​Arduino Project 047 - Relay Control Switch

RonWang7个月前 (12-13)科学研究292

Project 47 Relay Control Switch


47 Relay Control Circuit

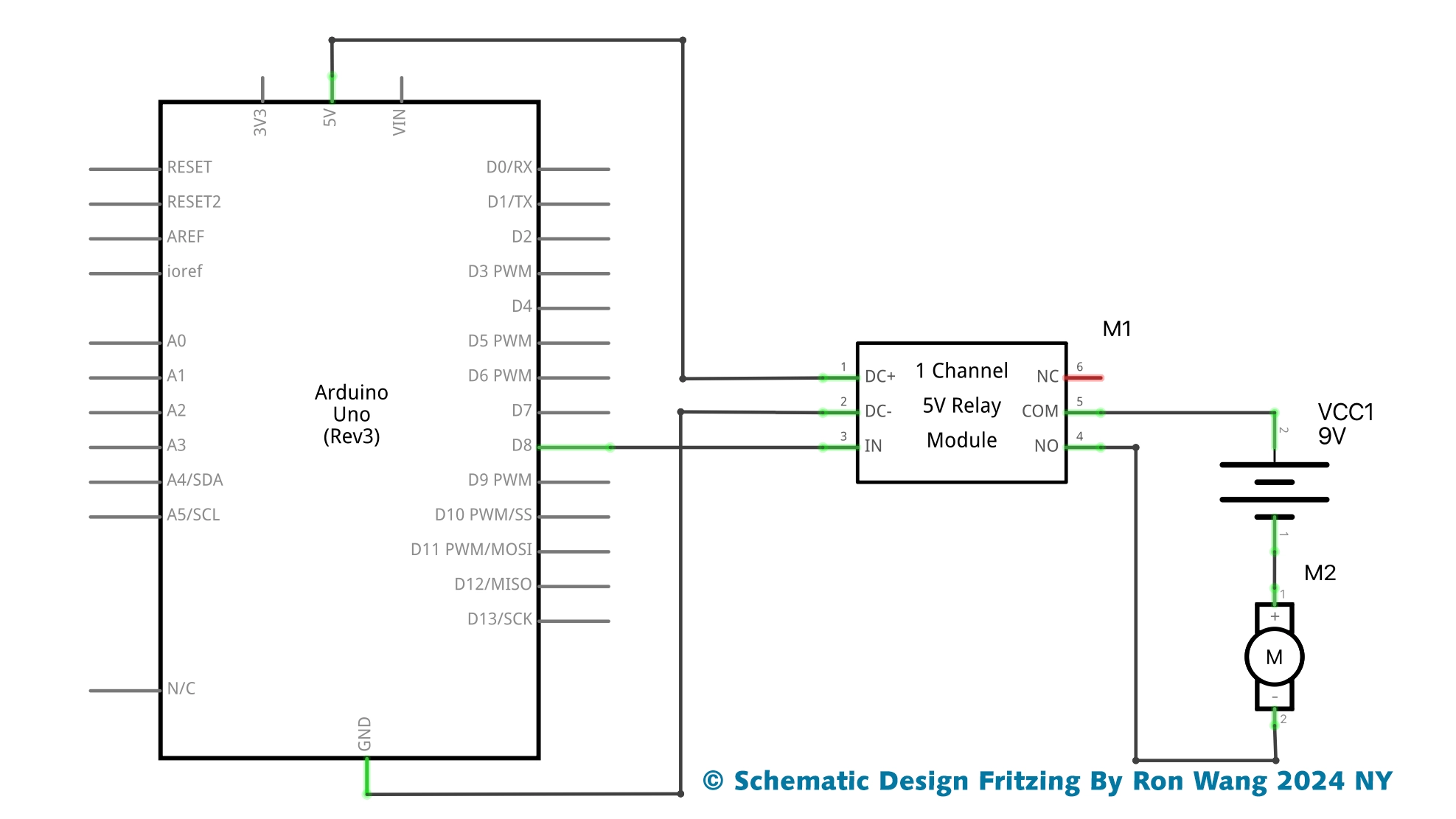

47 Relay Control  Schematic

/* Project 47 Relay Control
 * Coding by Ronwang
 * This example code is in the public domain
 * Hardware Support by Autaba Website :https://www.autabaec.com
 */
// The Arduino pin, which connects to the IN pin of relay
const int RELAY_LIGHT= 8;
// the setup function runs once when you press reset or power the board
void setup() {
  // initialize digital pin as an output.
  pinMode(RELAY_LIGHT, OUTPUT);
}
// the loop function runs over and over again forever
void loop() {
  digitalWrite(RELAY_LIGHT, HIGH);
  delay(1000);
  digitalWrite(RELAY_LIGHT, LOW);
  delay(1000);
}
