GB/T 970.1-2008 圆板牙和圆板牙架的型式和尺寸

RonWang4年前 (2021-08-25)工业技术1506

GB/T 970.1-2008 圆板牙和圆板牙架的型式和尺寸

Die Thread

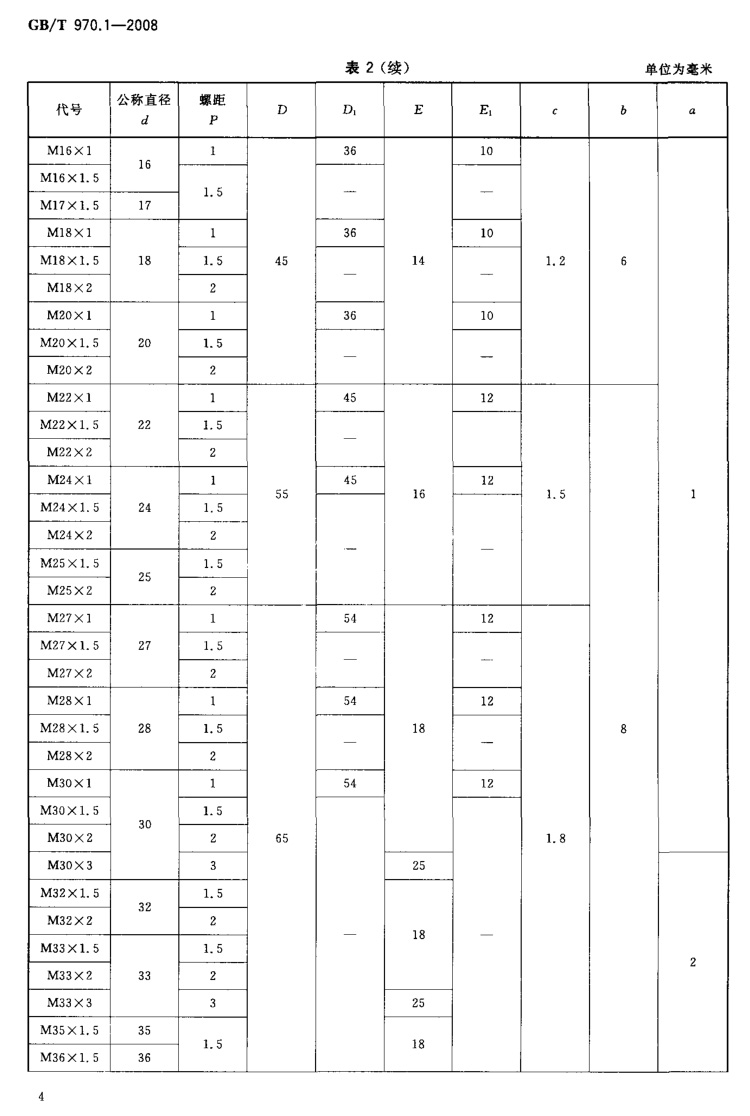

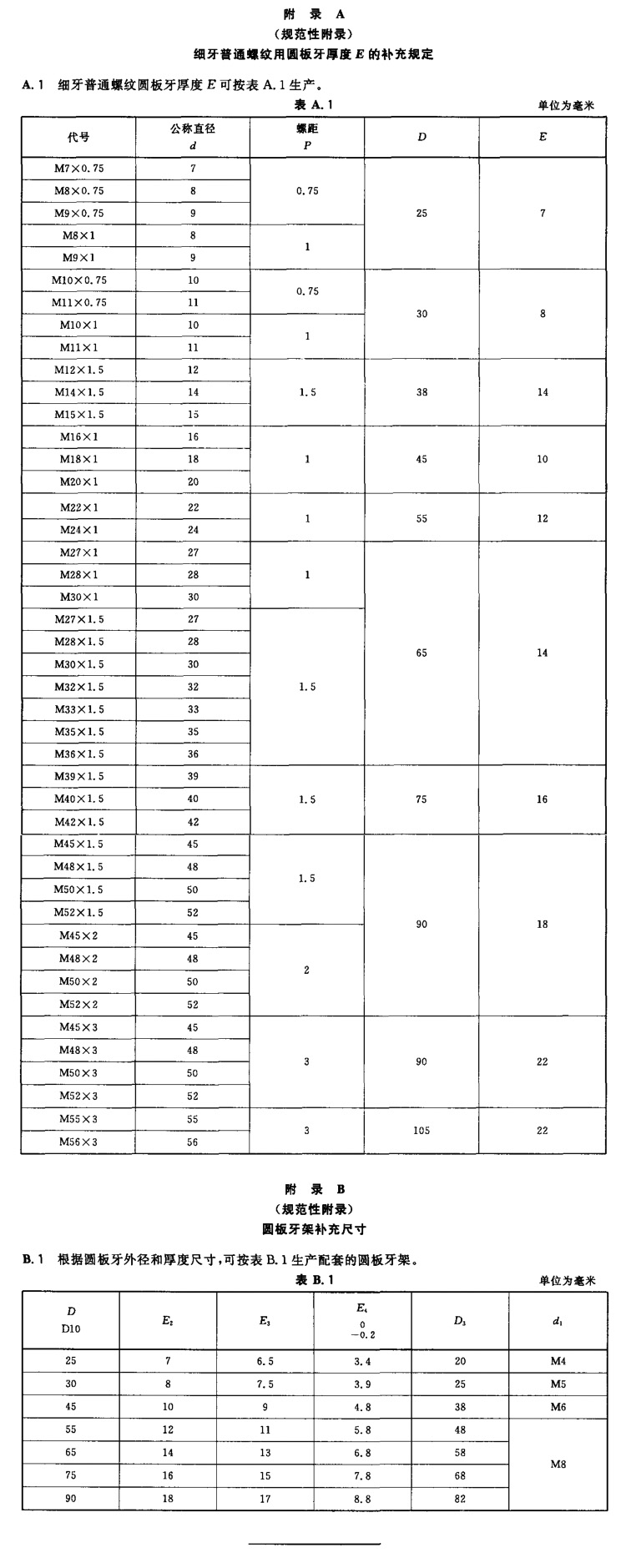

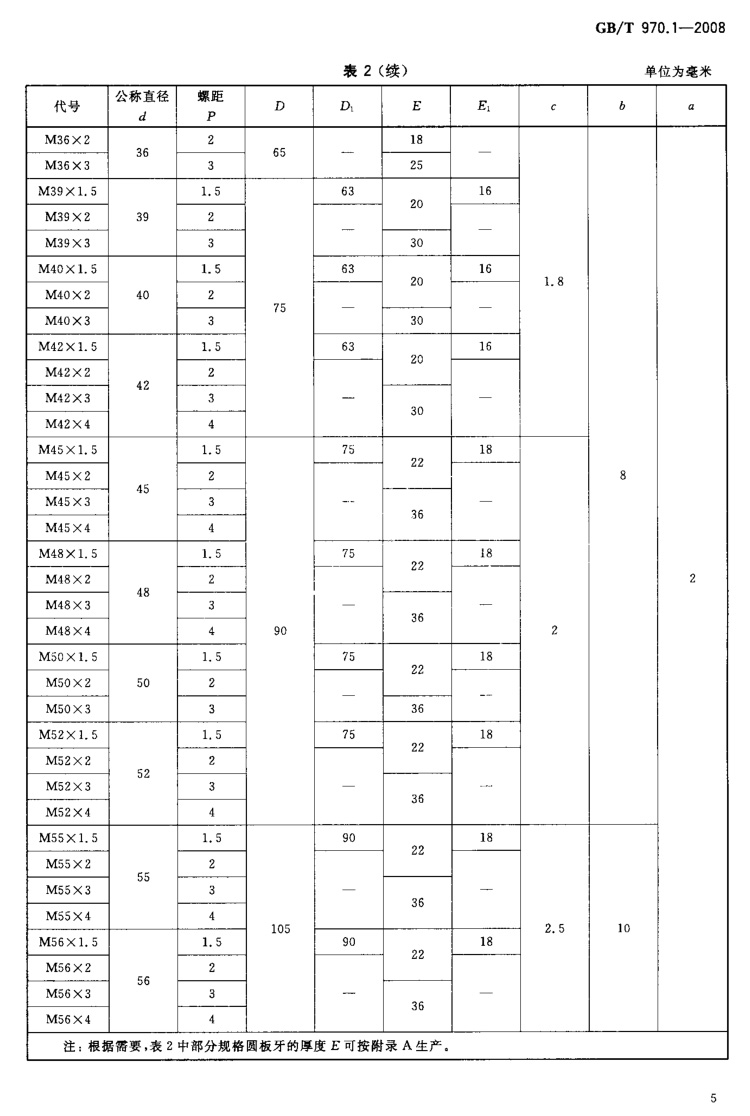

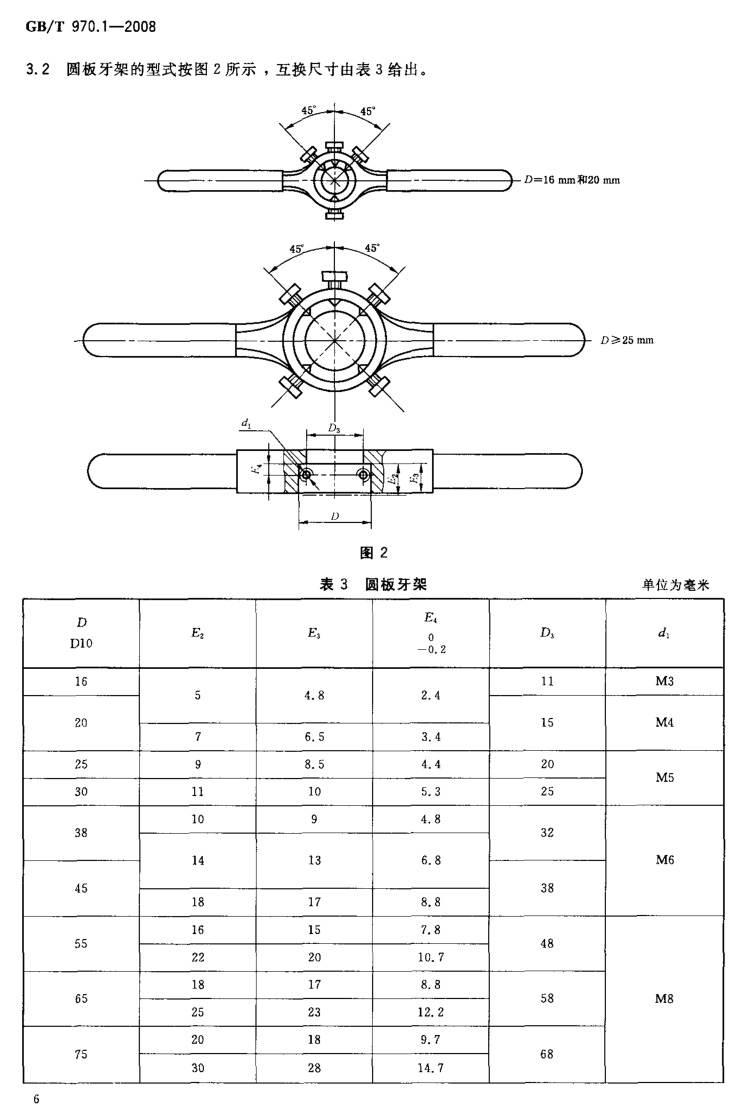

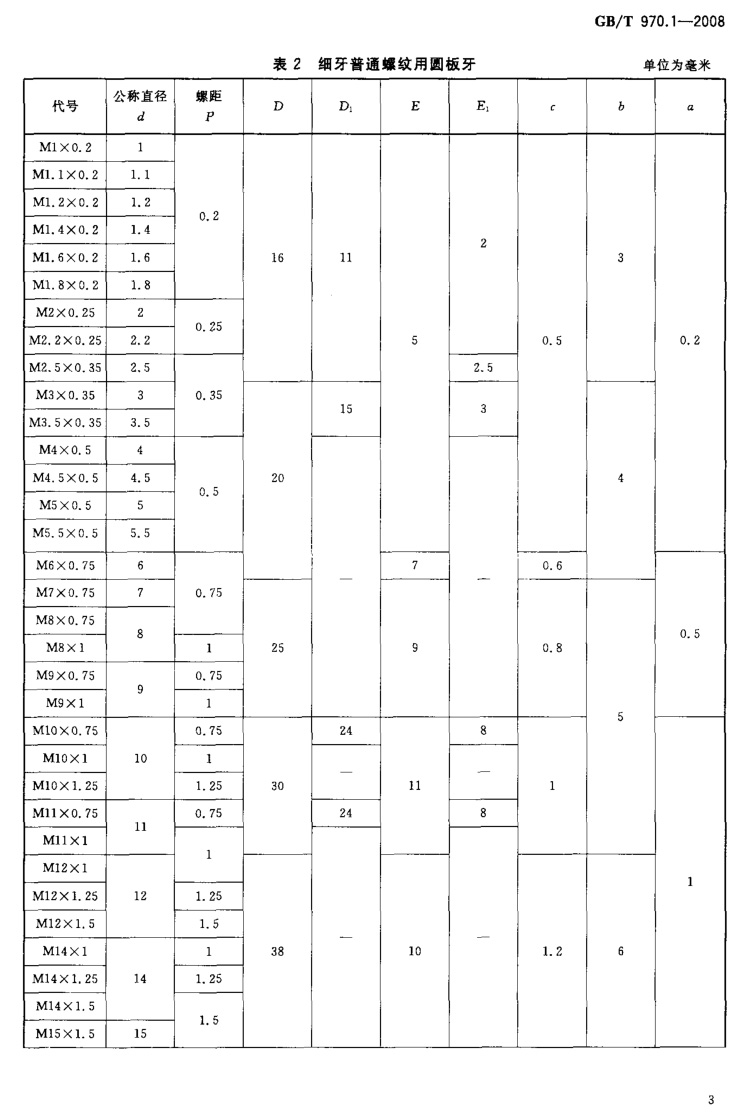

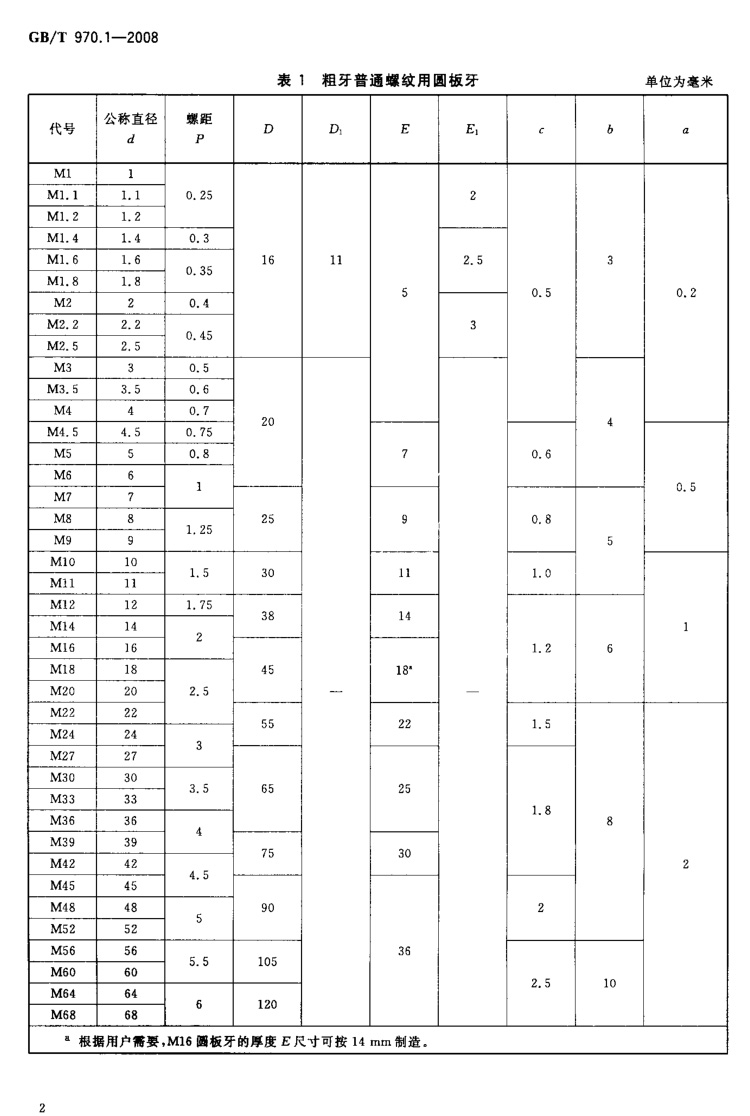

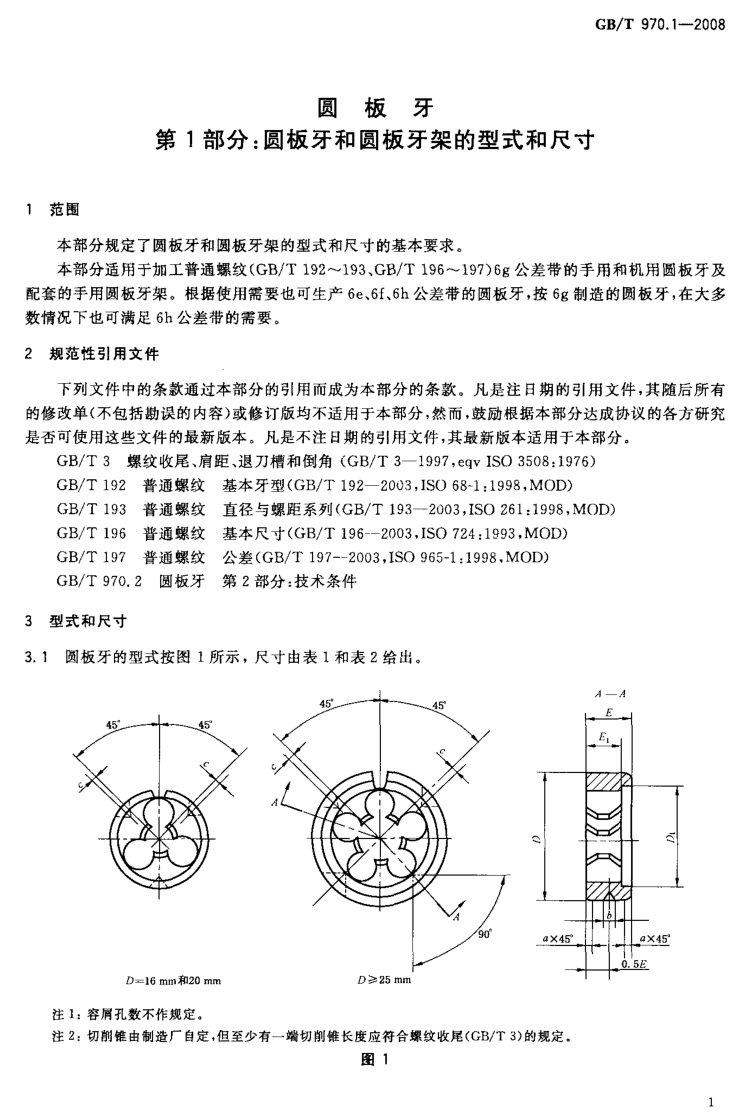

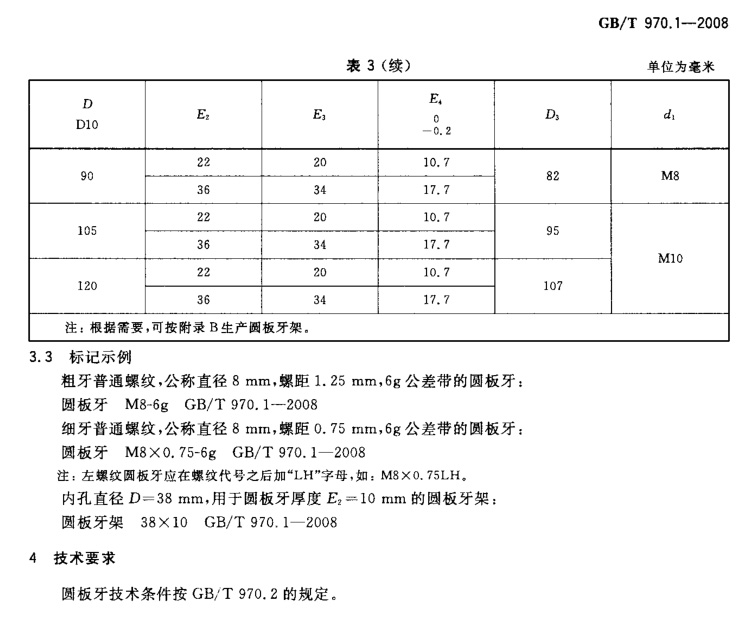

GB/T970-2008

GB/T970-2008

GB/T970-2008

GB/T970-2008

GB/T970-2008

GB/T970-2008

GB/T970-2008

GB/T970-2008

Hydraulic Thread Chart Final
