Arduino Project 025 - Servo Control

RonWang8个月前 (11-13)电子编程458

You will need to obtain a standard RC servo; any of the small or mid-sized servos will do. Larger servos are not recommended because they require their own power supply as they consume a lot of current. Also, you’ll need a potentiometer; pretty much any value rotary potentiometer will do. I used a 4.7K ohm one for testing. Note that you may also wish to connect your Arduino to an external DC power supply.

Project 25 Basic Servo Control

Arduino Servo Motor Circuit

Arduino Servo Motor Circuit

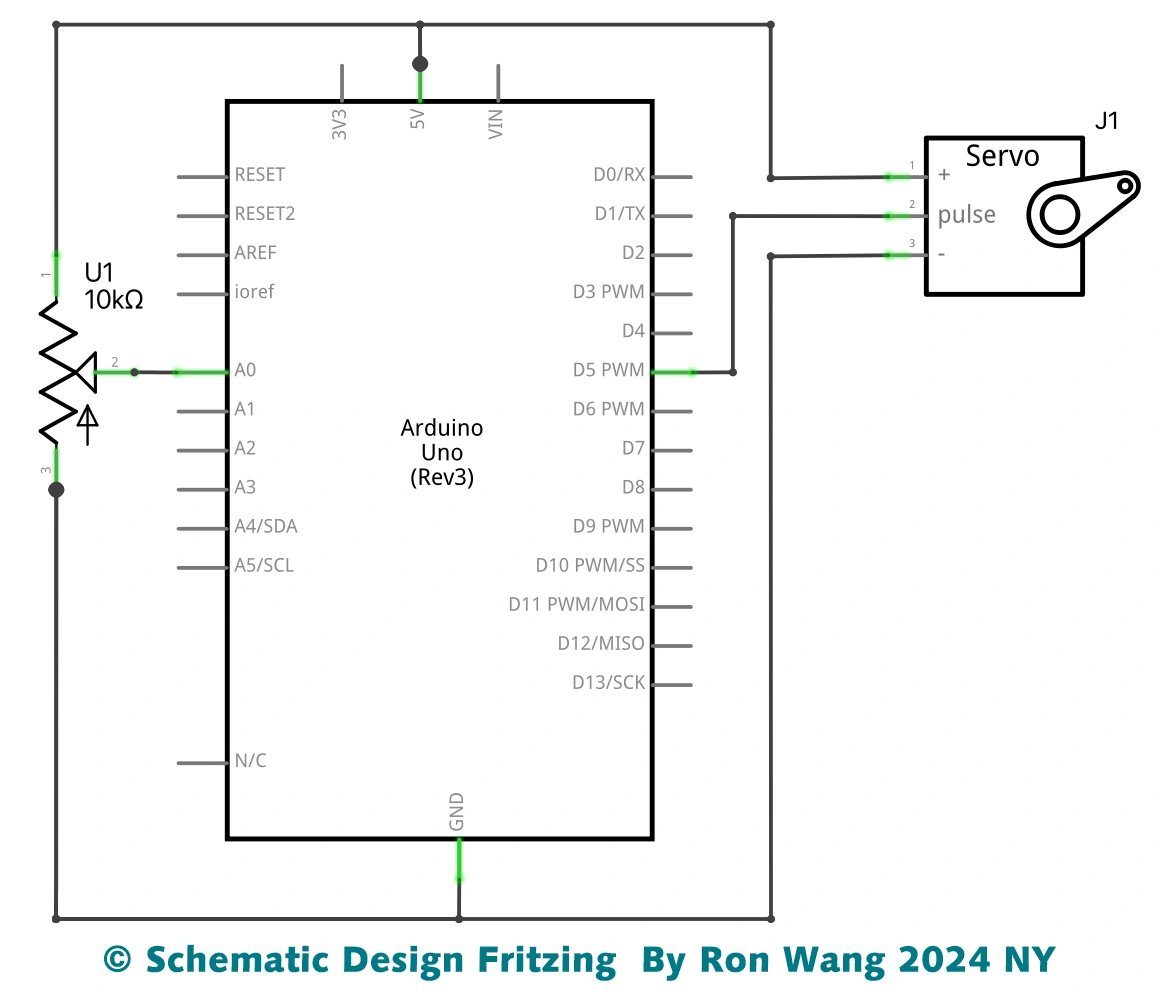

Arduino Servo Motor Schematic

Arduino Servo Motor Circuit

/* Coding Ron Wang
   Nov.13th 2024
   Autaba support for coding hardware
   Project 25 Basic Servo Control
 */

#include <Servo.h>
Servo servo1; // Create a servo object
void setup()
{
 servo1.attach(5); // Attaches the servo on Pin 5 to the servo object
}
void loop()
{
 int angle = analogRead(0); // Read the pot value
 angle=map(angle, 0, 1023, 0, 180); // Map the values from 0 to 180 degrees
 servo1.write(angle); // Write the angle to the servo
 delay(15); // Delay of 15ms to allow servo to reach position
}
