Elastomer seals – How to avoid the trade-off between purity, plasma resistance, and high temp.

In semiconductor manufacturing, it can be challenging to find a   quality sealing material with both high purity and plasma resistance   when exposed to 300° C and above. There is often a trade-off between   these requirements when searching for the best-suited elastomer for any   given application. However, Precision Polymer Engineering (PPE) has   developed a new high-temperature, high-purity perfluoroelastomer (FFKM)   material capable of satisfying these requirements without any need for   compromise.

Figure 1. Perlast Helios. Source: PPE

Perlast Helios is composed of the new FFKM material family, which   offers excellent sealing performance at high temperatures without   affecting other key material properties. Perlast Helios G7HA – the first   material in the range – was launched in September 2018, and has since   undergone various benchmarking tests against the leading sealing   materials on the market.

High-purity, plasma- and high temperature-resistant material for semiconductor applications

Qualification of an elastomer material carries significant risk, and   can prove expensive for semiconductor fabricators and OEMs. The risk is   heightened if the elastomer part is specified for a particularly   critical location, for example, close to the wafers or exposed to   plasma. It is therefore important to gather as much data as possible and   provide the customer with confidence before the qualification of a new   material starts on their equipment. PPE conducted a series of   benchmarking tests to reduce the risk of wasting precious tool time or   the contamination of equipment.

As a leading seal manufacturer, PPE is often asked for a material   compatible with all processes and chemistries. Unfortunately, it is not   so simple. The type of plasma process, chemistries and tools are all   important considerations. Additional key requirements include the   temperature of the application, the level of purity required to minimize   contamination and the expected mean time between cleans.

The simple answer is there is not one material suitable for all   processes in semiconductor applications. For example, a material that   performs well in oxygen plasma may be comparatively poor in fluorine   radical plasma. A thorough understanding of each semiconductor   application is crucial in the selection of the right sealing material.

Perlast Helios G7HA has a fully organic formulation with excellent   sealing and plasma properties. It is a 70 Shore A hardness elastomer   with a continuous high-temperature rating of 310° C.

Perlast Helios G7HA: Facts on plasma resistance

Plasma exposure benchmarking results compared the new Perlast Helios   material against popular competitor grades and some existing PPE   materials.

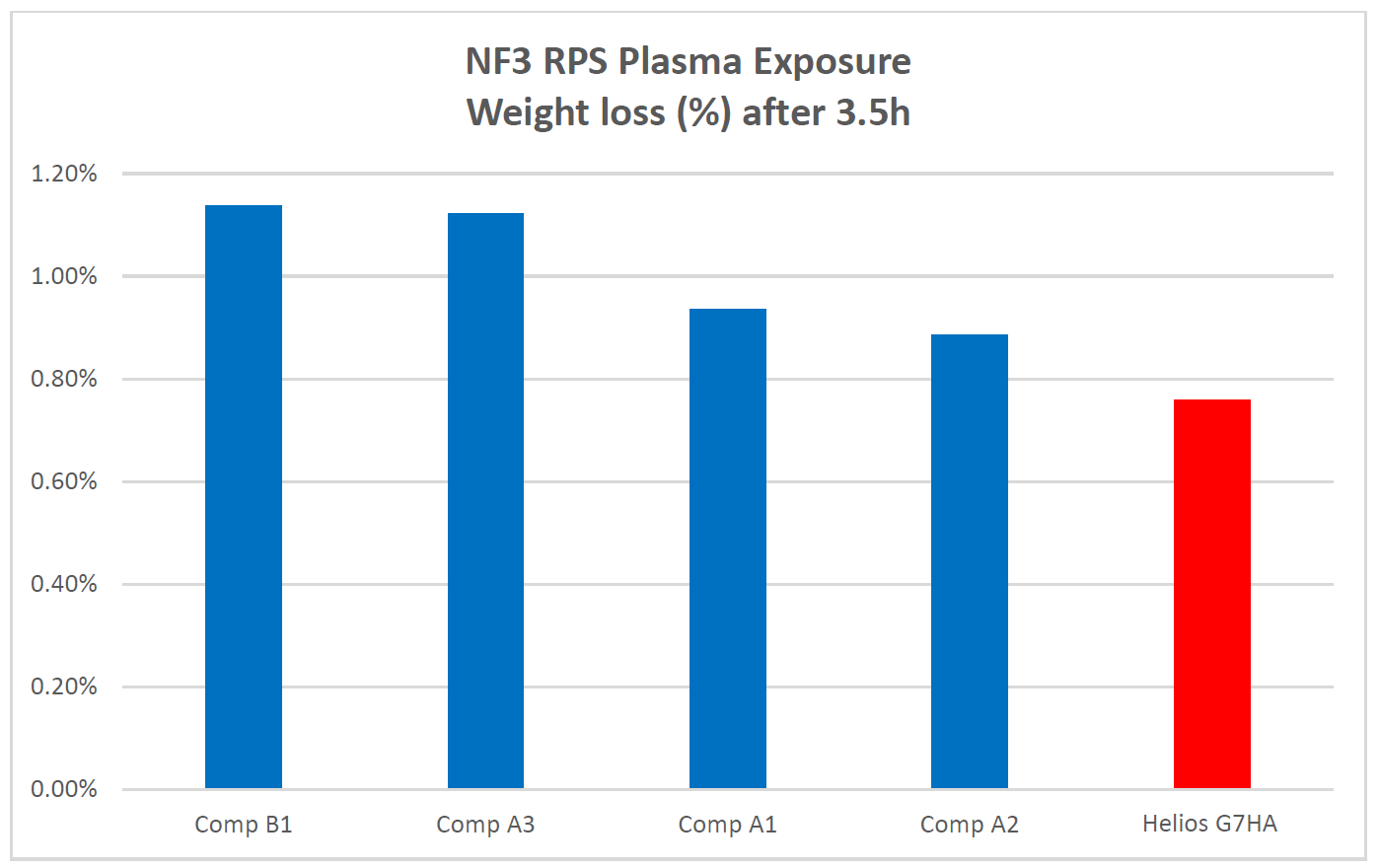

Figure 3: Nitrogen trifluoride remote plasma source exposure – elastomer weight loss percentage after 3.5 hours. Source: PPE

Nitrogen trifluoride (NF3) is one of the most commonly used gases in cleaning, making elastomer seal resistance to NF3 plasma very important. O-rings were exposed to NF3   plasma in a reactive-ion etching (RIE) tool for six hours. The Perlast   Helios material was benchmarked against common competitor materials and   was shown to have a significantly lower erosion rate – 27% lower than   competitor A1 and A2.

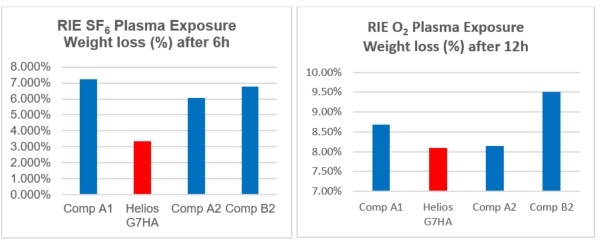

Figure 4: RIE sulfur hexafluoride plasma exposure (left); RIE oxygen plasma exposure (right). Source: PPE

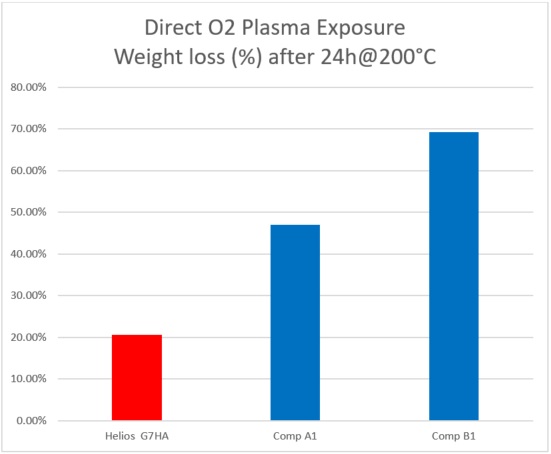

Figure 5: Direct oxygen plasma exposure. Source: PPE

Perlast Helios G7HA outperformed competitors in sulfur hexafluoride RIE plasma, oxygen plasma and in direct oxygen plasma.

Mechanical properties of Perlast G7HA

Compression set is another important property of an elastomer seal.   Compression set is the percentage deformation of a test specimen at a   temperature under a given amount of compression. The test piece can be a   button or a standard-size O-ring.

The result of compression set test is deformation, and a low value   corresponds to better recovery of the shape. G7HA was tested against one   of the market-leading elastomer sealing materials used in the   semiconductor industry (coded in the following figures as competitor   A1).

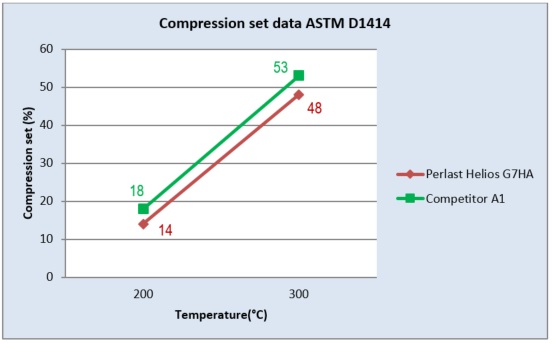

Figure 6: Compression set testing of Perlast Helios G7HA compared to leading competitor grade. Source: PPE

However, compression set testing does not always give an accurate   indication of the elastomer’s sealing performance. Some materials can   recover almost fully after compression but the sealing force generated   by the elastomer may not be enough to provide robust sealing in some   applications. Compressive stress relaxation testing provides a much   better prediction of long-term sealing performance.

Extended lifetime of Perlast G7HA

Compression stress relaxation (CSR) testing provides valuable data on   the sealing performance of a material. It measures the retention force   of an elastomer material at a set temperature. Stress relaxation is a   reduction in the counterforce for maintaining the applied strain. The   force is not constant but decreases with time when the material ages.   This is expressed as a percentage of the initial force in a typical CSR   curve.

In this test a standard-size O-ring is placed in a load cell and   compressed by 25%. It is then placed into a constant temperature oven —   in this case the temperature is 300° C. The initial sealing force is   measured, and then the decay in sealing force measured over a period.   Put simply, a higher retained sealing force equates to a longer   lifetime.

In the graph below (Figure 7) it can be seen that Perlast Helios G7HA   outperforms competitor A1 after 500 hours exposure at 300° C. Put   simply, a higher retained sealing force equates to a longer lifetime.

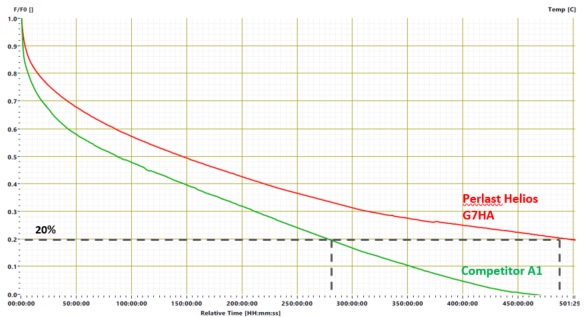

Figure 7: CSR comparison between Perlast Helios G7HA and competitor grade. Source: PPEP

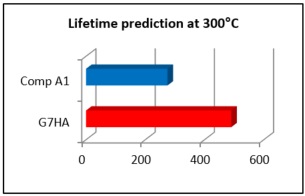

Figure 8: Lifetime prediction at 20% original force. Source: PPESummary of the CSR results

In the graph (Figure 7), after 500 hours exposure at 300° C, Helios   G7HA demonstrated longer lifetime by more than 44% and retained higher   sealing force of more than 22% against competitor A1.

The lifetime of a seal is dependent on many parameters, including   compression rate, temperature, groove type and the aggressiveness of   chemical media. It is impossible to model these variables and mirror   real-world conditions, but having benchmarking data against a common   competitor material gives a strong indication about the real lifetime of   the new material.

High-purity materials reduce the risk of process contamination

It has been proven that fully organic materials reduce the risk of   process contamination in critical semiconductor applications. One common   method of determining the composition of an elastomer material is   thermogravimetric analysis (TGA). This technique measures the mass of a   sample while it is heated, cooled or held at constant temperature in a   defined atmosphere.

During this test, a small portion of the elastomer material is placed   on a sensitive balance within a furnace. The temperature is increased   to 600° C in a nitrogen environment, then air is added to burn off the   organic compounds. The temperature is then further increased to 1,000° C   to leave only ash residue from inorganic ingredients. If the material   is fully organic, there will be no residue left after the test. If the   material is inorganically filled, the inorganic fillers – those which   are stable at temperatures over 1,000° C – will be observed as residue.

Using TGA, Perlast Helios G7HA, competitor A1 and PPE’s material   Perlast G67P were all compared. From the results in the graph below   (Figure 9), the values go down to zero for all the curves, meaning that   all materials tested were fully organic.

Figure 9: TGA of Perlast Helios G7HA compared to a competitor grade material and Perlast G67P. Source: PPE

Another method of measuring the purity of elastomers is trace metal  content analysis. In this test the trace metal content of 30 common  elements were measured using ICP-MS equipment by a leading third-party   analytical lab. Determining the levels of trace metal impurities of   elastomers is important to maintain the high yields in semiconductor   manufacturing. The metal elements in elastomers, after plasma etch or   contact with process gasses, can end up on wafers and diffuse into it,  contaminating the wafer. Using high-purity seals will reduce the risk of   particulation and improve wafer yields.

Unique mix of plasma performance at high temperature and high purity

The number of elastomer sealing materials available for semiconductor  applications is vast. Until now, for the most challenging and critical   environments there has been a trade-off between high purity, mechanical  properties, high-temperature capability and plasma resistance.

Perlast Helios G7HA has been extensively tested to demonstrate its  unique combination of excellent plasma performance in a variety of  different chemistries, in addition to excellent high-temperature sealing   performance and ultra-high purity. With Perlast Helios G7HA,   semiconductor operators no longer have to choose which feature is most  important – they can have them all.
