诊断和测试压力高压软管概览

RonWang5年前 (2020-04-05)工业技术977

Diagnostic and Calibration Pressure hose overview

-0.1-6MPa  (-1~ +60bar)

1100P04 00  (Transpaency) / 1100P04 01(Black)   / 1100P 04 02 Green 1100P 04 03 Red 1100P04 04 Blue 1100P04 05 Yellow 1100P 04 06 Grey    LP: 745

1100P03 00 18  1100P03 04 18            LP: 510

Standard Length : 1500mm

Out Diameter : 4mm  X 2mm

Medium:  Noncorrosive Gases

Thread Style: M20x1.5 Female  , M20x1.5 QCD Male

GE Calibrators

-0.1-40Mpa (-1~ +400bar ) / -0.1-63Mpa (-1~ +630bar )

2020N-012V30 / 2020N-012v50 ( V50 no Recommend for diagnostic application )   BLACK

2mm, 5/64 , 4.9mm  40Mpa ,20mm   LP:78  /  2mm 5/64, 4.9 ,63Mpa, 20mm   LP:79

-0.1-120Mpa (-1~ +1200bar )

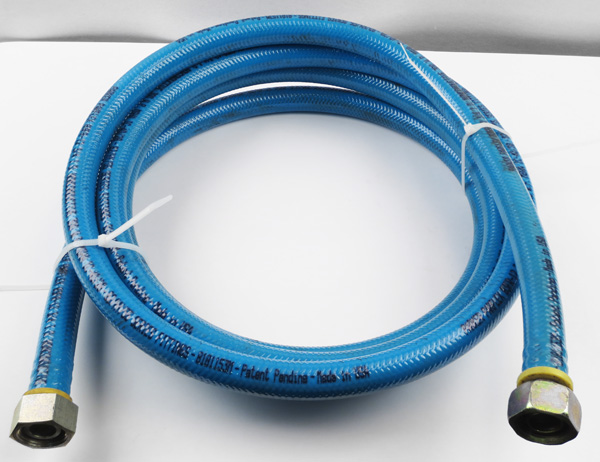

2240D-025V32  BLUE  Two Spiral layers

4.0mm, 7.7mm , 120Mpa, 75mm  0.10Kg/m                          LP: 197.00

-0.1-220Mpa (-1~ +2200bar )

2440D-025V32  BLUE  Four Spiral layers

3.9mm, 10.4mm , 220Mpa(550MPa), 100mm, 0.21Kg/m   LP: 415.00

Advace Use  Left Thread Style

-0.1-280Mpa (-1~ +2800bar )

2640D-025V32      BLUE   Six Sprial layers of Max

3.9mm ,12.0mm ,280Mpa( 700Mpa), 140mm, 0.29Kg/m    LP:  1057.00

-0.1-300Mpa (-1~ +3000bar )

2740D-025V16     YELLOW   Six Sprial layers of Max

4.0mm, 12.0mm , 300Mpa( 780Mpa), 120mm, 0.40Kg/m    LP : 795.00

Advace Use  Left Thread Style

-0.1-400Mpa (-1~ +4000bar )

2840D-03V34    RED  Eight Spiral layers of maximum

4.5mm, 15.0mm , 400Mpa( 800Mpa), 200mm, 0.66Kg/m    LP:  1365.00

Advace Use  Left Thread Style
